Recent technological advances by RayBiotech have enabled the largest commercially available glycosylation antibody array to date. With the Human Glycosylation Array 1000, researchers can now efficiently obtain glycosylation profiles in their samples. The glycosylation profiles of 1000 human proteins can be simultaneously detected, including, but not limited to, cytokines, chemokines, adipokines, growth factors, angiogenic factors, proteases, soluble receptors, soluble adhesion molecules in cell culture supernatants, serum, plasma and other samples types.

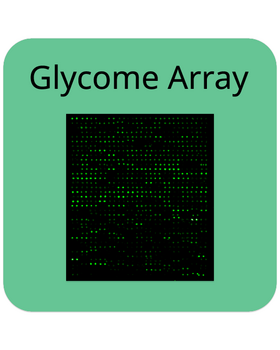

Capture antibodies are printed onto glass slides and the glycans on these capture antibodies are removed. The glass slide arrays come pre-blocked and are ready to be incubated with samples. After incubation with samples and washing to remove unbound proteins, five unique biotin-labeled lectins are incubated with the array to allow binding to the glycans from captured target proteins. Streptavidin-conjugated fluorescent dye (Cy3 equivalent) is then added to the array. Finally, the glass slide is dried and laser fluorescence scanning is used to visualize the signals. These signals are then compared to the array map to identify glycosylated proteins present in the samples.

11b-HSD1, 2B4, 4-1BB, 6Ckine, A1BG, A2M, ABL1, ACE, ACE-2, ACK1, ACPP, ACTH, Activin A, Activin B, Activin C, Activin RIA / ALK-2, Activin RIB / ALK-4, Activin RII A/B, Activin RIIA, ADAM-9, ADAMTS-1, ADAMTS-10, ADAMTS-13, ADAMTS-15, ADAMTS-17, ADAMTS-18, ADAMTS-19, ADAMTS-4 , ADAMTS-5, ADAMTS-L2, Adiponectin / Acrp30, Adipsin, Afamin, AFP, AgRP, ALBUMIN, ALCAM, Aldolase A, Aldolase B, Aldolase C, ALK, Alpha 1 AG, Alpha 1 Microglobulin, Alpha Lactalbumin, ALPP, AMICA, AMPKa1, Amylin, Angiogenin, Angiopoietin-1, Angiopoietin-2, Angiopoietin-4, Angiopoietin-like 1, Angiopoietin-like 2, Angiopoietin-like Factor, Angiostatin, ANGPTL3, ANGPTL4, Annexin A7, APC, APCS, Apelin, Apex1, APJ, APN, ApoA1, ApoA2, ApoA4, ApoB, ApoB100, ApoC1, ApoC2, ApoC3, ApoD, ApoE, ApoE3, ApoH, ApoM, APP, APRIL, AR (Amphiregulin), Artemin, ASPH, Attractin, Axl, B3GNT1, B7-1 /CD80, BACE-1, BAF57, BAFF, BAFF R / TNFRSF13C, BAI-1, bax, BCAM, BCMA / TNFRSF17, BD-1, BDNF, Beta 2M, Beta Defensin 4, Beta IG-H3, beta-Catenin, beta-NGF, Biglycan, BIK, BLAME, BLC / BCA-1 / CXCL13, BMP-15, BMP-2, BMP-3, BMP-3b / GDF-10, BMP-4, BMP-5, BMP-6, BMP-7, BMP-8, BMP-9, BMPR-IA / ALK-3, BMPR-IB / ALK-6, BMPR-II, BMX, BNIP2, BNP, BTC, Btk, C2, C3a, C5/C5a, C7, C8B, C9, CA125, CA15-3, CA19-9, CA9, Cadherin-13, Calbindin, Calbindin D, Calcitonin, Calreticulin, Calsyntenin-1, Cardiotrophin-1 / CT-1, CART, Caspase-3, Caspase-8, Cathepsin B, Cathepsin D, Cathepsin L, Cathepsin S, CBP, CCK, CCL14 / HCC-1 / HCC-3, CCL28 / VIC, CCR1, CCR2, CCR3, CCR4, CCR5, CCR6, CCR7, CCR8, CCR9, CD 163, CD14, CD200, CD23, CD24, CD27 / TNFRSF7, CD30 / TNFRSF8, CD30 Ligand / TNFSF8, CD36, CD38, CD40 / TNFRSF5, CD40 Ligand / TNFSF5 /CD154, CD44, CD45, CD46, CD47, CD55, CD59, CD61, CD71, CD74, CD79 alpha, CD90, CD97, CEA, CEACAM-1, Cerberus 1, Ceruloplasmin, CFHR2, Chem R23, Chemerin, CHI3L1, Chordin-Like 1, Chordin-Like 2, Chromogranin A, Chymase, cIAP-2, Ck beta 8-1, CK-MB, Claudin-3, Claudin-4, CLC, CLEC3B, Clusterin, CNDP1, CNTF R alpha, CNTF, Coagulation Factor III / Tissue Factor, Coagulation Factor X/Xa, COCO, Complement factor H, Contactin-1, Contactin-2, Corticosteroid-binding globulin, COX-2, C-peptide, CPN2, Creatinine, CRIM 1, Cripto-1, CRP, CRTAM, CRTH-2, Cryptic, CSH1, Csk, CTACK / CCL27, CTGF / CCN2, CTLA-4 /CD152, cTnT / Troponin T, CutA, CV-2 / Crossveinless-2, CXCL14 / BRAK, CXCL16, CXCR1 / IL-8 RA, CXCR2 / IL-8 RB, CXCR3, CXCR4 (fusin), CXCR5 /BLR-1, CXCR6, Cyclin D1, Cystatin A, Cystatin B, Cystatin C, Cytochrome C, Cytokeratin 8, Cytokeratin18, Cytokeratin19, D6, DAN, DANCE, DBI, DCBLD2, DcR3 / TNFRSF6B, D-Dimer, Decorin, DEFA1/3, Defensin, Desmin, Dkk-1, Dkk-3, Dkk-4, DLL1, DLL4, DMP-1, DPPIV, DR3 / TNFRSF25, DR6 / TNFRSF21, Dtk, E-Cadherin, EDA-A2, EDAR, EDG-1, EGF, EGF R / ErbB1, EG-VEGF / PK1, EMAP-II, ENA-78, Endocan, Endoglin / CD105, Endorphin Beta, Endostatin, Endothelin, Endothelin Receptor A, Enolase 2, ENPP2, EN-RAGE, Eotaxin / CCL11, Eotaxin-2 / MPIF-2, Eotaxin-3 / CCL26, EpCAM, EphA1, EphA2, EphA3, EphA4, EphA5, EphA6, EphA7, EphA8, EphB1, EphB2, EphB3, EphB4, EphB6, Epiregulin, ErbB2, ErbB3, ErbB4, ERRa, Erythropoietin R, Erythropoietin, ESAM, E-Selectin, EV15L, EXTL2, FABP1, FABP2, FABP3, FABP4, Factor XIII A, Factor XIII B, FADD, FAK, FAM3B, FAP, Fas / TNFRSF6, Fas Ligand, Fc RIIB/C, Fen 1, FER, Ferritin, Fetuin A, Fetuin B, FGF Basic, FGF R3, FGF R4, FGF R5, FGF-10 / KGF-2, FGF-11, FGF-12, FGF-13 1B, FGF-16, FGF-17, FGF-18, FGF-19, FGF-20, FGF-21, FGF-23, FGF-4, FGF-5, FGF-6, FGF-7 / KGF, FGF-8, FGF-9, FGF-BP, FGFR1, FGFR1 alpha, FGFR2, Fibrinogen, Fibrinopeptide A, Fibronectin, Ficolin-3, FIH, FLRG, Flt-3 Ligand, Follistatin, Follistatin-like 1, FOLR1, FOXN3, FoxO1, FoxP3, Fractalkine, Frizzled-1, Frizzled-3, Frizzled-4, Frizzled-5, Frizzled-6, Frizzled-7, FRK, FSH, Furin, Fyn," GADD45A, Galanin, Galectin-1, Galectin-3, Galectin-3BP, Galectin-7, gamma-Thrombin, Gas1, GASP-1 / WFIKKNRP, GASP-2 / WFIKKN, Gastrin, GATA-3, GATA-4, GCP-2 / CXCL6, GCSF, G-CSF R / CD 114, GDF1, GDF11, GDF-15, GDF3, GDF5, GDF8, GDF9, GDNF, Gelsolin, GFR alpha-1, GFR alpha-2, GFR alpha-3, GFR alpha-4, Ghrelin, GITR / TNFRF18, GITR Ligand / TNFSF18, GLO-1, GLP-1, Glucagon, Glut1, Glut2, Glut3, Glut5, Glypican 3, Glypican 5, GM-CSF, GM-CSF R alpha, GMNN, GPBB, GPI, GPR-39, GPX1, GPX3, Granzyme A, Grb2, GREMLIN, GRO, GRO-a, Growth Hormone (GH), Growth Hormone R (GHR), GRP, GRP75, GRP78, GSR, GST, HADHA, HAI-1, HAI-2, Haptoglobin, HB-EGF, HCC-4 / CCL16, hCG alpha, hCGb, Hck, HCR / CRAM-A/B, HE4, Hemopexin, Hepassocin, Hepcidin, HGF, HGFR, HOXA10, HRG-alpha, HRG-beta 1, HSP10, HSP20, HSP27, HSP32, HSP40, HSP60, HSP70, HSP90, HSPA8, HTRA2, HVEM / TNFRSF14, I-309, IBSP, ICAM-1, ICAM-2, ICAM-3 (CD50), ICAM-5, IFN-alpha / beta R1, IFN-alpha / beta R2, IFN-beta, IFN-gamma, IFN-gamma R1, IGF2BP1, IGFBP-1, IGFBP-2, IGFBP-3, IGFBP-4, IGFBP-5, IGFBP-6, IGFBP-rp1 / IGFBP-7, IGF-I, IGF-I SR, IGF-II, IGF-II R, IL-1 alpha, IL-1 beta, IL-1 F10 / IL-1HY2, IL-1 F5 / FIL1delta, IL-1 F6 / FIL1 epsilon, IL-1 F7 / FIL1 zeta, IL-1 F8 / FIL1 eta, IL-1 F9 / IL-1 H1, IL-1 R3 / IL-1 R AcP, IL-1 R4 /ST2, IL-1 R6 / IL-1 Rrp2, IL-1 R8, IL-1 R9, IL-1 ra, IL-1 sRI, IL-1 sRII, IL-10, IL-10 R alpha, IL-10 R beta, IL-11, IL-12 p40, IL-12 p70, IL-12 R beta 1, IL-12 R beta 2, IL-13, IL-13 R alpha 1, IL-13 R alpha 2, IL-15, IL-15 R alpha, IL-16, IL-17, IL-17B, IL-17B R, IL-17C, IL-17D, IL-17E, IL-17F, IL-17R, IL-17RC, IL-17RD, IL-18 BPa, IL-18 R alpha /IL-1 R5, IL-18 R beta /AcPL, IL-19, IL-2, IL-2 R alpha, IL-2 R beta /CD122, IL-2 R gamma, IL-20, IL-20 R alpha, IL-20 R beta, IL-21, IL-21 R, IL-22, IL-22 BP, IL-22 R, IL-23, IL-23 R, IL-23p19, IL-24, IL-26, IL-27, IL-28A, IL-29, IL-3, IL-3 R alpha, IL-31, IL-31 RA, IL-33, IL-34, IL36RN, IL-4, IL-4 R, IL-5, IL-5 R alpha, IL-6, IL-6 R, IL-7, IL-7 R alpha, IL-8, IL-9 , INSL3, INSRR, Insulin, Insulin R, Insulysin / IDE, Integrin alpha V, IP-10, I-TAC / CXCL11, Itk, ITM2B, Kallikrein 10, Kallikrein 11, Kallikrein 14, Kallikrein 2, Kallikrein 5, Kallikrein 6, Kallikrein 7, Kallikrein 8, KCC3, KCTD10, KIF3B, Kininostatin / kininogen, KLF4, Kremen-1, Kremen-2, LAG-3, Latent TGF-beta bp1, Layilin, LBP, Lck, LDL R, LECT2, Lefty - A, Legumain, Leptin (OB), Leptin R, LFA-1 alpha, LH, LIF R alpha, LIF, LIGHT / TNFSF14, LIMPII, LIN41, Lipocalin-1, Livin, LOX-1, LPS, LRG1, LRP-1, LRP-6, L-Selectin (CD62L), LTF, LTK, Luciferase, Lumican, Lymphotactin / XCL1, Lymphotoxin beta / TNFSF3, Lymphotoxin beta R / TNFRSF3, Lyn, LYRIC, LYVE-1, LZTS1, MAC-1, Mammaglobin A, Marapsin, MATK, MBL, MBL-2, MCP-1, MCP-2, MCP-3, MCP-4 / CCL13, M-CSF, M-CSF R, MDC, Mer, Mesothelin, MFG-E8, MFRP, MICB, Midkine, MIF, MIG, MINA, MIP 2, MIP-1a, MIP-1b, MIP-1d, MIP-3 alpha, MIP-3 beta, MMP-1, MMP-10, MMP-11 /Stromelysin-3, MMP-12, MMP-13, MMP-14, MMP-15, MMP-16 / MT3-MMP, MMP-19, MMP-2, MMP-20, MMP-24 / MT5-MMP, MMP-25 / MT6-MMP, MMP-3, MMP-7, MMP-8, MMP-9, MSHa, MSP alpha Chain, MSP beta-chain, MTUS1, Musk, Myoglobin, NAIP, Nanog, NAP-2, NCAM-1 / CD56, NELL2, NEP, Nesfatin, Nestin, NET1, Netrin G2, Netrin-4, Neuritin, NeuroD1, Neurokinin-A, Neuropeptide Y, Neuropilin-2, Neurturin, NF1, NGF R, NM23-H1/H2, Notch-1, NOV / CCN3, NPTX1, NPTXR, NR3C3, NRG1 Isoform GGF2, NRG1-alpha / HRG1-alpha, NRG1-beta1 / HRG1-beta1, NRG2, NRG3, NT-3, NT-4, Ntn1, OCT3/4, Omentin, Orexin A, Orexin B, OSM, Osteoactivin / GPNMB, Osteocalcin, Osteocrin, Osteopontin, Osteoprotegerin / TNFRSF11B, OX40, OX40 Ligand / TNFSF4, p21, p27, p53, PAI-1, PAK7, Pancreastatin, Pancreatic Polypeptide, Pappalysin-1, PARC / CCL18, PARK7, P-Cadherin, PCAF, PD-1, PD-ECGF, PDGF R alpha, PDGF R beta, PDGF-AA, PDGF-AB, PDGF-BB, PDGF-C, PDGF-D, PDX-1, PECAM-1 /CD31, PEDF , Pentraxin3 / TSG-14, PEPSINOGEN I, PEPSINOGEN II, Peroxiredoxin 6 (Prdx6), Persephin, PF4 / CXCL4, PGRP-S, PI 16, PI 3Kinase p85 beta, PIM2, PKM2, Plasminogen, PlGF, PLUNC, Podocalyxin, POMC, PON1, PON2, PPARg2, PPP2R5C, Pref-1, Presenilin 1, Presenilin 2, Pro-BDNF, Procalcitonin, Pro-Cathepsin B, Progesterone, pro-Glucagon, Progranulin, Prohibitin, Prolactin, Pro-MMP-13, Pro-MMP-7, Pro-MMP-9, ProSAAS, Prostasin, Protein p65, PSA-Free, PSA-total, P-selectin, PSP, PTH, PTHLP, PTN, PTPRD, PYK2, PYY, RAGE, RANK / TNFRSF11A, RANTES, Ras, RBP4, RECK, RELM alpha, RELM beta, RELT / TNFRSF19L, Resistin, RET, RIP1, ROBO4, ROCK1, ROCK2, ROR1, ROR2, ROS, RYK, S100 A8/A9, S100A10, S100A4, S100A6, S100A8, S-100b, SAA, SART1, SART3, SCF, SCF R /CD117, SCG3, SDF-1 / CXCL12, Selenoprotein P, SEMA3A, Serotonin, Serpin A1, Serpin A12, Serpin A3, Serpin A4, Serpin A5, Serpin A8, Serpin A9, Serpin B5, Serpin D1, Serpin I1, SERTAD2, sFRP-1, sFRP-3, sFRP-4, sgp130, SHBG, SIGIRR, Siglec-5/CD170, Siglec-9, SLPI, SMAC, Smad 1, Smad 4, Smad 5, Smad 7, Smad 8, SNCG, Soggy-1, Somatotropin, Sonic Hedgehog (Shh N-terminal), SOST, SOX17, SOX2, SPARC, SPARCL1, Spinesin, SPINK1, SRMS, SSEA-1, SSEA-4, SSTR2, SSTR5, Survivin, SYK, Syndecan-1, Syndecan-3, TACE, TACI / TNFRSF13B, TAF4, Tarc, TCCR / WSX-1, Tec, TECK / CCL25, TFF1, TFF3, TFPI, TGF-alpha, TGF-beta 1, TGF-beta 2, TGF-beta 3, TGF-beta 5, TGF-beta RI / ALK-5, TGF-beta RII, TGF-beta RIII, Thrombin, Thrombomodulin, Thrombopoietin (TPO), Thrombospondin-1, Thrombospondin-2, Thrombospondin-4, Thymidine Kinase-1, Thymopoietin, Thyroglobulin, Thyroid Peroxidase (TPX), Tie-1, Tie-2, TIM-1, TIMP-1, TIMP-2, TIMP-3, TIMP-4, TL1A / TNFSF15, TLR1, TLR2, TLR3, TLR4, TMEFF1 / Tomoregulin-1, TMEFF2, TNF RI / TNFRSF1A, TNF RII / TNFRSF1B, TNF-alpha, TNF-beta, TNK1, TOPORS, TPA, TPM1, TRA-1-60, TRA-1-81, TRADD, TRAIL R1 / DR4 / TNFRSF10A, TRAIL R2 / DR5 / TNFRSF10B, TRAIL R3 / TNFRSF10C, TRAIL R4 / TNFRSF10D, TRAIL / TNFSF10, TRANCE, Transferrin, Trappin-2, TREM-1, TRKB, Troponin C, Troponin I, TROY / TNFRSF19, TRPC1, TRPC6, TRPM7, Trypsin 1, TSG-6, TSH, TSLP, TSLP, TWEAK / TNFSF12, TWEAK R / TNFRSF12, TXK, Tyk2, TYRO10, Ubiquitin+1, uPA, uPAR, Uromodulin, Vasopressin, Vasorin, VCAM-1 (CD106), VDUP-1, VE-Cadherin, VEGF, VEGF R1, VEGF R2 (KDR), VEGF R3, VEGF-B, VEGF-C, VEGF-D, VEGI / TNFSF15, VGF, VIP Receptor 2, Visfatin, Vitamin D Receptor, Vitamin D-BP, Vitamin K-dependent protein S, Vitronectin, VWF, WIF-1, Wilms Tumor 1, WISP-1 / CCN4, XEDAR, XIAP, ZAG, ZAP70

Upon receipt, all components of the Human Glycosylation Array 1000 kit should be stored at -20°C. Once thawed, the glass slide and Cy3 equivalent dye-conjugated Streptavidin should be kept at –20°C and all other components may be stored at 4°C. The entire kit should be used within 6 months of purchase.
