货号：QAH-CHE-1-1


产品描述：Human Chemokine Array Q1


产品类型：Antibody Array


产品规格：8 samples/kit

名称：Human Chemokine Array Q1
更多推荐 > >
可在线通过咨询了解详情

通过以下按钮进入下一步
马上咨询
在线询价
  • 详情
  • 评价

货号：QAH-CHE-1-1

产品描述：Human Chemokine Array Q1

产品类型：Antibody Array

产品规格：8 samples/kit


Antigen Information

Gene Symbols:
AXL | BTC | CCL13 | CCL14 | CCL16 | CCL17 | CCL18 | CCL19 | CCL20 | CCL21   View more

Assay Format

Number of Targets Detected:
40
Species Detected:
  • Human
Compatible Sample Types:
  • Cell Culture Supernatants
  • Cell Lysates
  • Other Body Fluids
  • Plasma
  • Serum
  • Tissue Lysates
Design Principle:
  • Sandwich-based
Method of Detection:
Fluorescence Laser Scanner
Quantitative/Semi-Quantitative:
Quantitative
Solid Support:
Glass Slide

Product Specifications

Size:
1, 2, or 4 Slide Kit (16 sub-arrays per slide)

Product Features

  • More cost-effective than traditional ELISA
  • High specificity and system reproducibility
  • Suitable for diverse sample types
  • Low sample volume requirement: 50 µL or less
  • Get results same day (6-hour processing time)
  • Well-suited for high throughput assays
  • Q Analyzer software provides one-step computation

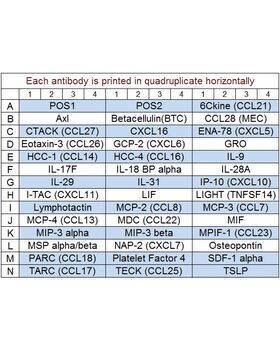

Target Names

Scroll over each target protein for more information
6Ckine
(CCL21)
Axl
Betacellulin
(BTC)
CCL28
(MEC)
CTACK
(CCL27)
CXCL16
ENA-78
(CXCL5)
Eotaxin-3
(CCL26)
GCP-2
(CXCL6)
GRO
HCC-1
(CCL14)
HCC-4
(CCL16)
IL-9
IL-17F
IL-18 BP alpha
IL-28A
IL-29
IL-31
IP-10
(CXCL10)
I-TAC
(CXCL11)
LIF
Light
(TNFSF14)
Lymphotactin
(XCL1)
MCP-2
(CCL8)
MCP-3
(MARC/CCL7)
MCP-4
(CCL13)
MDC
(CCL22)
MIF
MIP-3 alpha
(CCL20)
MIP-3 beta
(CCL19)
MPIF-1
(CCL23)
MSP alpha/beta
NAP-2
(PPBP/CXCL7)
Osteopontin
(SPP1)
PARC
(CCL18)
Platelet Factor 4
(CXCL4)
SDF-1 alpha
(CXCL12 alpha)
TARC
(CCL17)
TECK
(CCL25)
TSLP

Application Notes

Suggested Application
Multiplexed Protein Detection; Biomarker Screening; Identifying Key Factors; Confirming Biological Process; Biomarker Validation; Validation of Antibody Array Results; Quantitative Protein Detection; Establishing Normal Range
Kit Components
  • Human Chemokine Array Q1 Slide(s)
  • Blocking Buffer
  • Wash Buffer 1
  • Wash Buffer 2
  • Lyophilized Standard Mix
  • Biotinylated Detection Antibody Cocktail
  • Streptavidin-Conjugated Fluor
  • Slide Washer/Dryer
  • Adhesive Plastic Strips
  • Manual
Other Materials Required
  • Distilled or deionized water
  • Small plastic boxes or containers
  • Pipettors, pipette tips and other common lab consumables
  • Orbital shaker or oscillating rocker
  • Aluminum foil
  • Gene microarray scanner or similar laser fluorescence scanner

View Compatible Laser Scanners

Don't have a compatible scanner? RayBiotech now offers FREE scanning service for all RayBio glass slide antibody arrays! Learn More
Protocol Outline
  1. Dry the glass slide
  2. Prepare Standards
  3. Block array surface
  4. Incubate with Samples and Standards
  5. Incubate with Biotinylated Detection Antibody Cocktail
  6. Incubate with Streptavidin-Conjugated Fluor
  7. Disassemble the glass slide
  8. Scan with a gene microarray laser scanner
  9. Perform densitometry and analysis

Storage/Stability

For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array slide(s), standard mix, detection antibody cocktail, and Cy3-Conjugated Streptavidin at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
